LASER DIODES
SHORT WAVELENGTHS
670nm, 660nm, 650nm, 640nm, 635nm

LASER MODULES
LONG WAVELENGTHS
780nm, 808nm, 850nm, 904nm, 940nm, 980nm

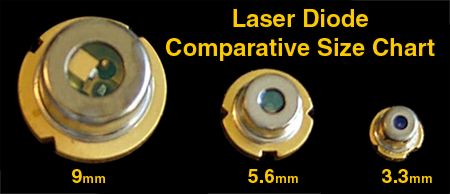

3.3mm Laser Diode or Module, Driver Circuit, Housing and Lens

Features:

     1. APC (auto power control) IC inside
     2. Low current consumption of the APC circuit
     3. Much smaller LD module
     4. Saving module cost

     5. Convert current drive LD into voltage drive LD
     6. Surge current protection
     7. Wide voltage range of operation

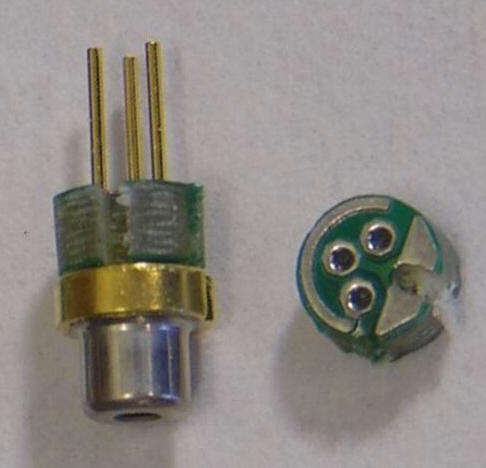

3.3mm diode with round circuitry

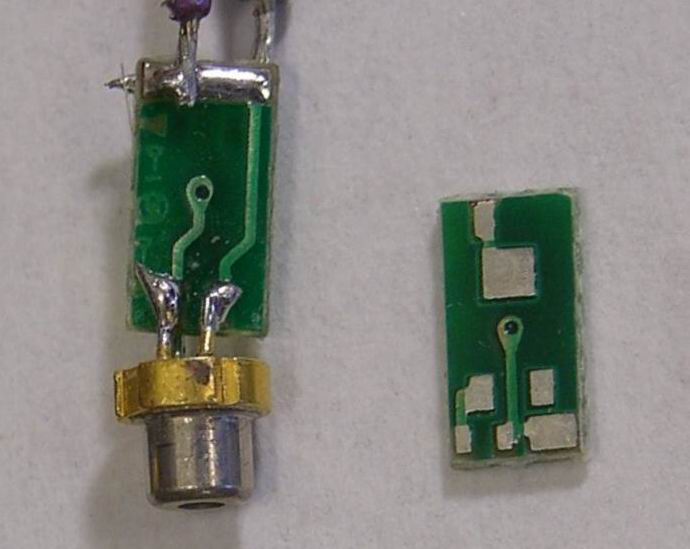

3.3mm diode with rectangular circuitry



Visible Laser Diodes Without Internal APC
Infrared Laser Diodes Without Internal APC
Click for Specs OPTIC  OUTPUT WAVELENGTH SAMPLE PRICE
33D660-5 5mW 660 N/A
33D650-5 5mW 650 N/A
33D635-5 5mW 635 21.00
Click for Specs OPTIC  OUTPUT WAVELENGTH SAMPLE PRICE
33D780-5 5mW 780 N/A
33D808-5 5mW 808 N/A
33D840-5 5mW 840 N/A
33D904-5 5mW 904 N/A
33D980-5 5mW 980 N/A

Visible Laser Diodes With Internal APC
Infrared Laser Diodes With Internal APC
Click for Specs OPTIC  OUTPUT WAVELENGTH SAMPLE PRICE
33D660-5 5mW 660 N/A
33D650-5 5mW 650 N/A
33D635-5 5mW 635 28.00
Click for Specs OPTIC  OUTPUT WAVELENGTH SAMPLE PRICE
33D780-5 5mW 780 N/A
33D808-5 5mW 808 N/A
33D840-5 5mW 840 N/A
33D904-5 5mW 904 N/A
33D980-5 5mW 980 N/A

NOTE:  $100.00 minimum order.
Orders under $100.00, please contact DigiKey at 1-800-344-4539.

APC Internal Circuit Schematic

Technical Data

Maximum Ratings
Item
Symbol
Rating
Unit
Power Supply Voltage
Vcc
2.5~3
V
Laser Optical Output Power
P
7
mW
Operation Temperature
Topr
-10 ~ +40
C
Storage Temperature
Tstg
-40 ~ +75
C



Electrical-Optical Characteristics @Tc=25C
Item
Symbol
Min.
Typ.
Max
Unit
Condition
Wavelength
λ
630
634
640
nm
Ρο=5mW

Operation Current

Iορ
-
40
50
mA
Ρο=5mW
Vcc=3V
Operation Voltage
Vορ
2.5
-
3
Volt
Ρο=5mW
Variable Resistor
VR
-
15
50
Ρο=5mW
Vcc=3V
Parallel Divergence Angle
θ
6
7.5
11
Deg
Ρο=5mW
Perpendicular Divergence Angle
θ
30
33
40
Deg
Ρο=5mW
Parallel FFP Deviation Angle
Δθ
-3.0
0
+3.0
Deg
Ρο=5mW
Perpendicular FFP Deviation Angle
Δθ
-3.0
0
+3.0
Deg
Ρο=5mW
Emission Point Accuracy
ΔxΔyΔz
-80
0
+80
um
-
Power-Temp Stability (25~50 C)
ΔΡοτ
-10
0
+10
%
Ρο=5mW@25 C
Power-Vcc Stability (3~2.5V)
ΔΡον
-10
0
+10
%
Ρο=5mW

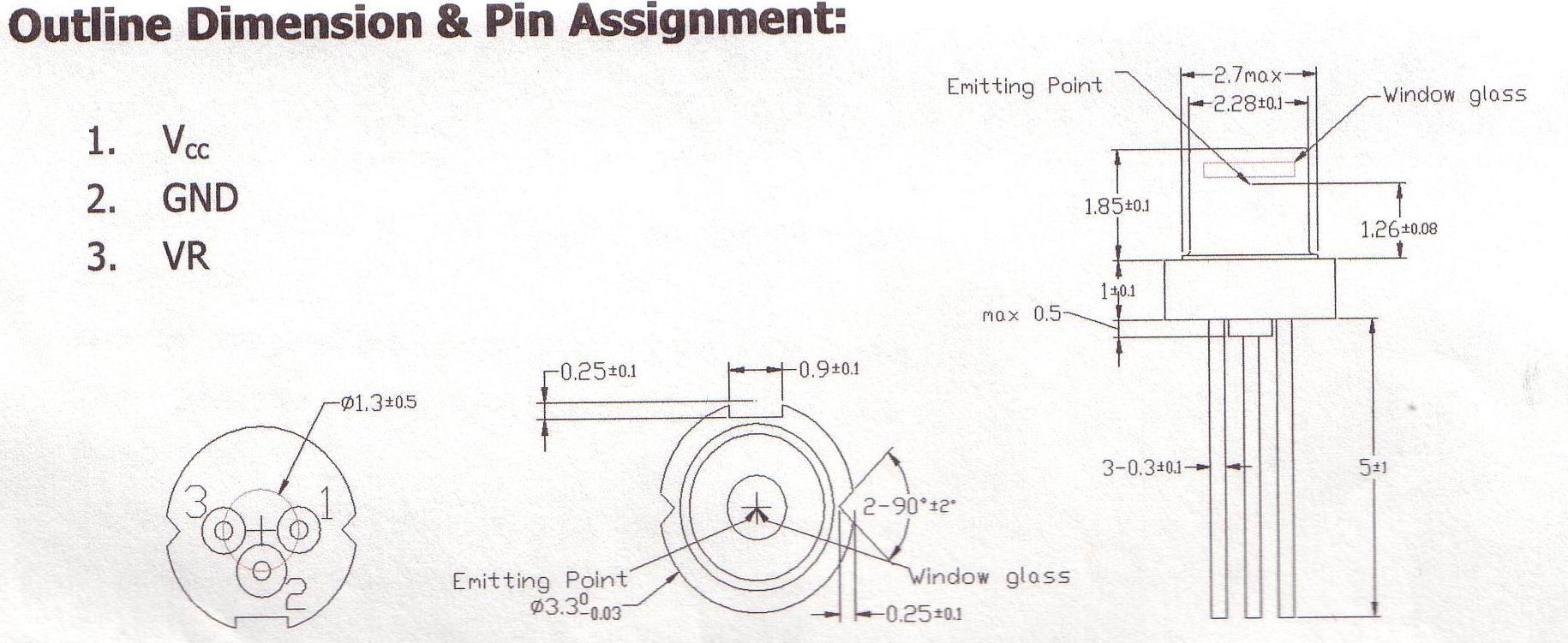

Click here for additional technical data and drawings
