US-Lasers - Half Laser Diode Modules (OEM Only)

High and Low Power - Short Wavelength Laser Diodes
IR - 780nm, 808nm, 840nm, 904nm, 940nm, 980nm
Visible - 670nm, 660nm, 650nm, 645nm, 635nm
5mW, 10mW, 15mW, 30mW, 50mW
Laser Diode Features:
  • Laser Diode Wavelength 670 - 635nm
  • 5.6 or 9mm Laser Diode Package
  • 5mW Power Laser Diode Output
  • High Efficiency Diodes
  • Laser Diode Pin Out - Style A
  • Laser Diode Rise Time: 1ns
  • Laser Diode Fall Time: 2ns
  • AlGalnP Index Guided Laser
  • Laser Structure - MQW
  • Single Longitudinal Mode Laser
  • Large Laser Inventory
  • OEM Laser Diode
  • Wide Operating Temp Range -10C to +60C
  • All American Made Laser Diodes

These are a few example configurations of our half modules.
We can configure them to meet your needs at a reasonable price.

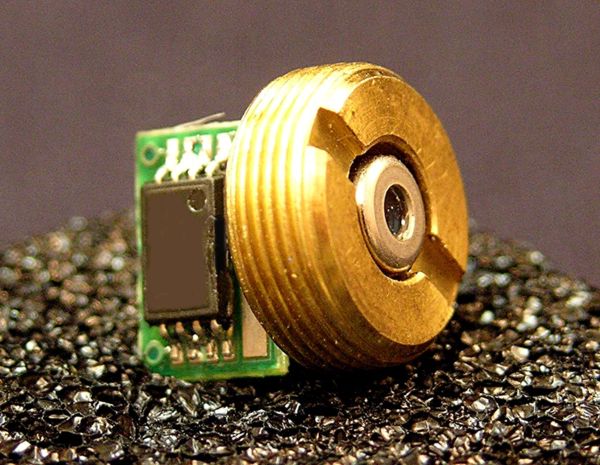

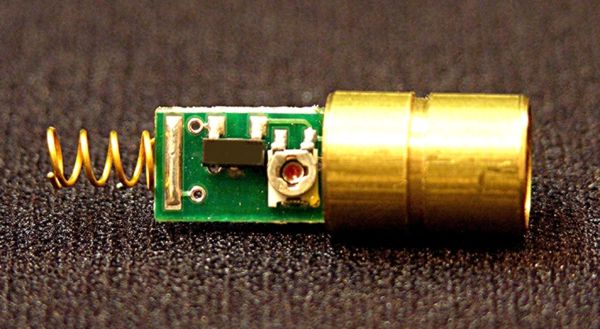

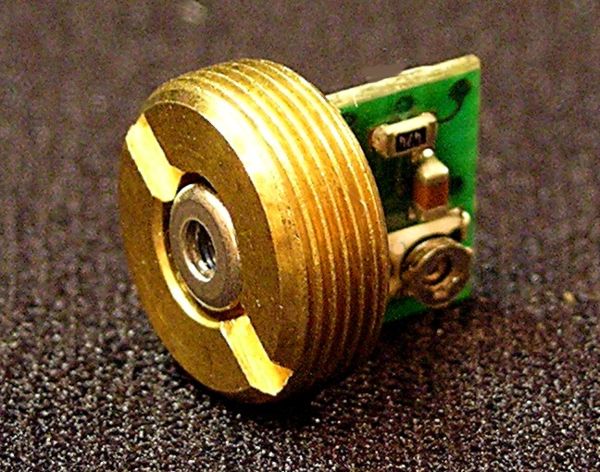

Configuration 1



Diameter = .372
Length = .389
3/8 x56 thread

Diameter = .372
Length = .389
3/8 x56 thread
Diameter = .372
Length = .389
3/8 x56 thread

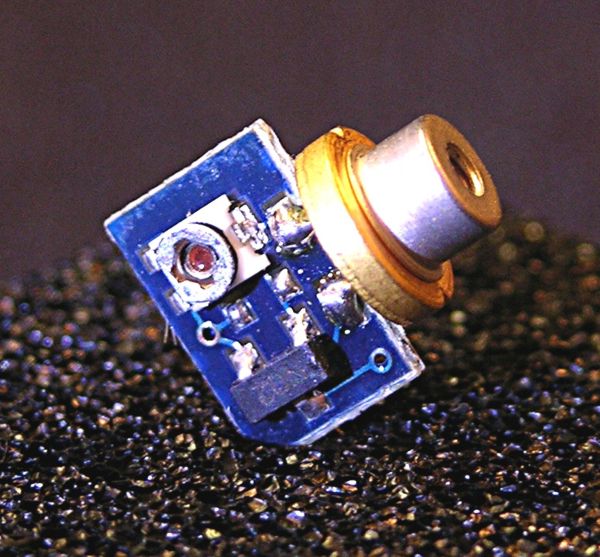

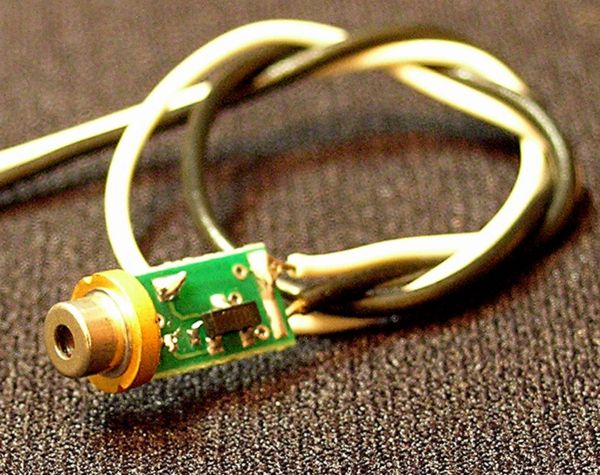

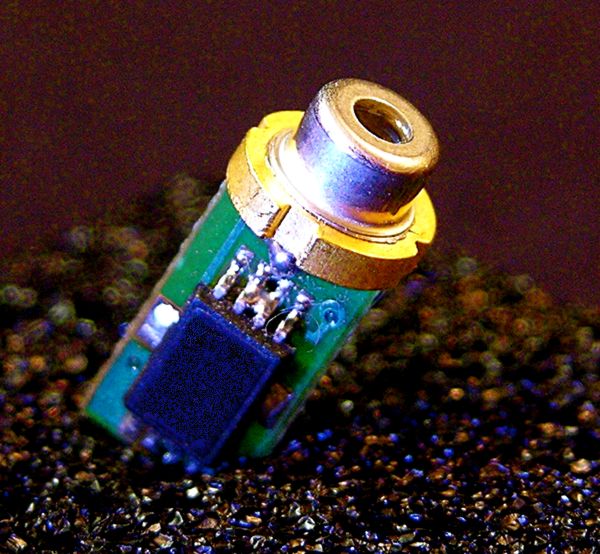

Configuration 2

  Diode Diameter = .220
Board Width = .306
Overall Length = .400
Diode Diameter = .220
Overall Length = .511
Diode Diameter = .220
Overall Length = .511

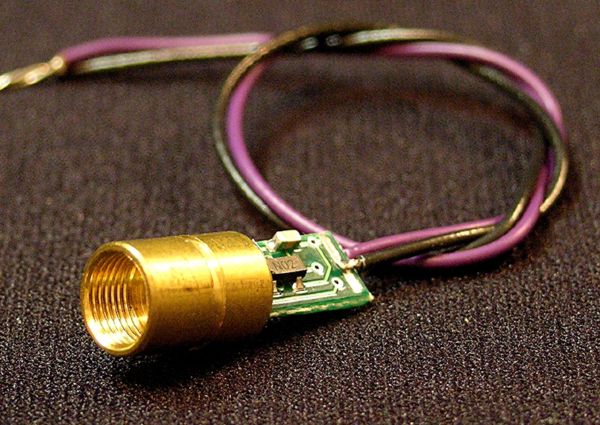

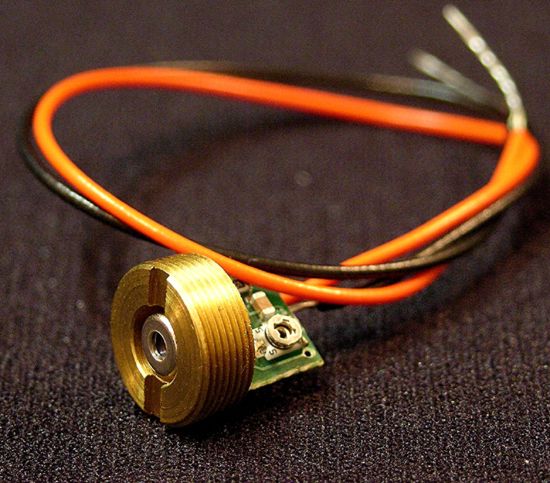

Configuration 3


  Diameter = .250
Length = .685
12-56 thread



Diode Diameter = .250
Overall Length = .700




Click Images for larger view

Click for Laser Diode Specs OPTIC  OUTPUT WAVELENGTH SAMPLE PRICE
HM660-5 5mW 660 +/-10 29.00
HM650-5 5mW 650 +/-10 31.00
HM635-5 5mW 635 +/-10 40.00
HM780-5 5mW 780 +/-10 31.00
HM808-5 5mW 808 +/-10 31.50
HM840-5 5mW 840 +/-10 34.00
HM904-5 5mW 904 +/-10 35.50
HM980-5 5mW 980 =/-10 40.00
